Precision
Fiber Laser Solutions
High-precision plate, tube, and integrated cutting systems | engineered for sustainable manufacturing | maximum productivity
GPX Series Flagship Model I High-Speed Plate Laser Cutting Machine
Flagship-level high-speed plate cutting solution
Max Acceleration
Material Type
GPX Series 2.0
✦ Flagship Model I High-Speed Plate Laser Cutting Machine
Efficient Flash Cutting
Easy to Learn & Use. For efficient processing of small and medium-sized sheet materials, the advantages of the bus system enable high-speed cutting that combines speed and precision, greatly reducing idle travel time and achieving a leap in production capacity.

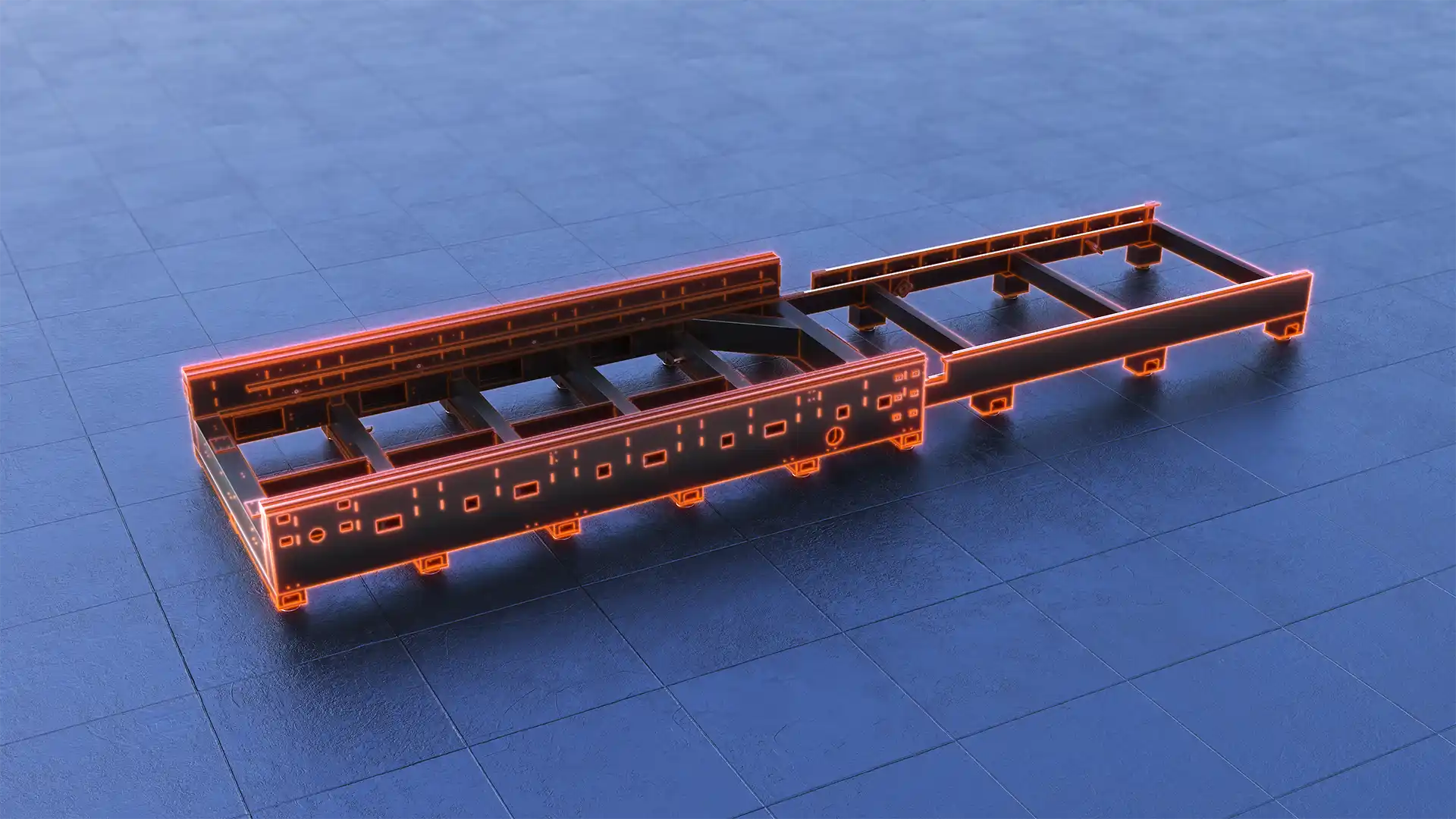

High Rigidity & Low Center of Gravity
The high-quality heavy-duty steel plate welded structure, combined with the low center of gravity design, ensures excellent stability during high-speed cutting. The expansion joint process prevents high-temperature deformation and extends service life by 20 times.
20× Lifespan

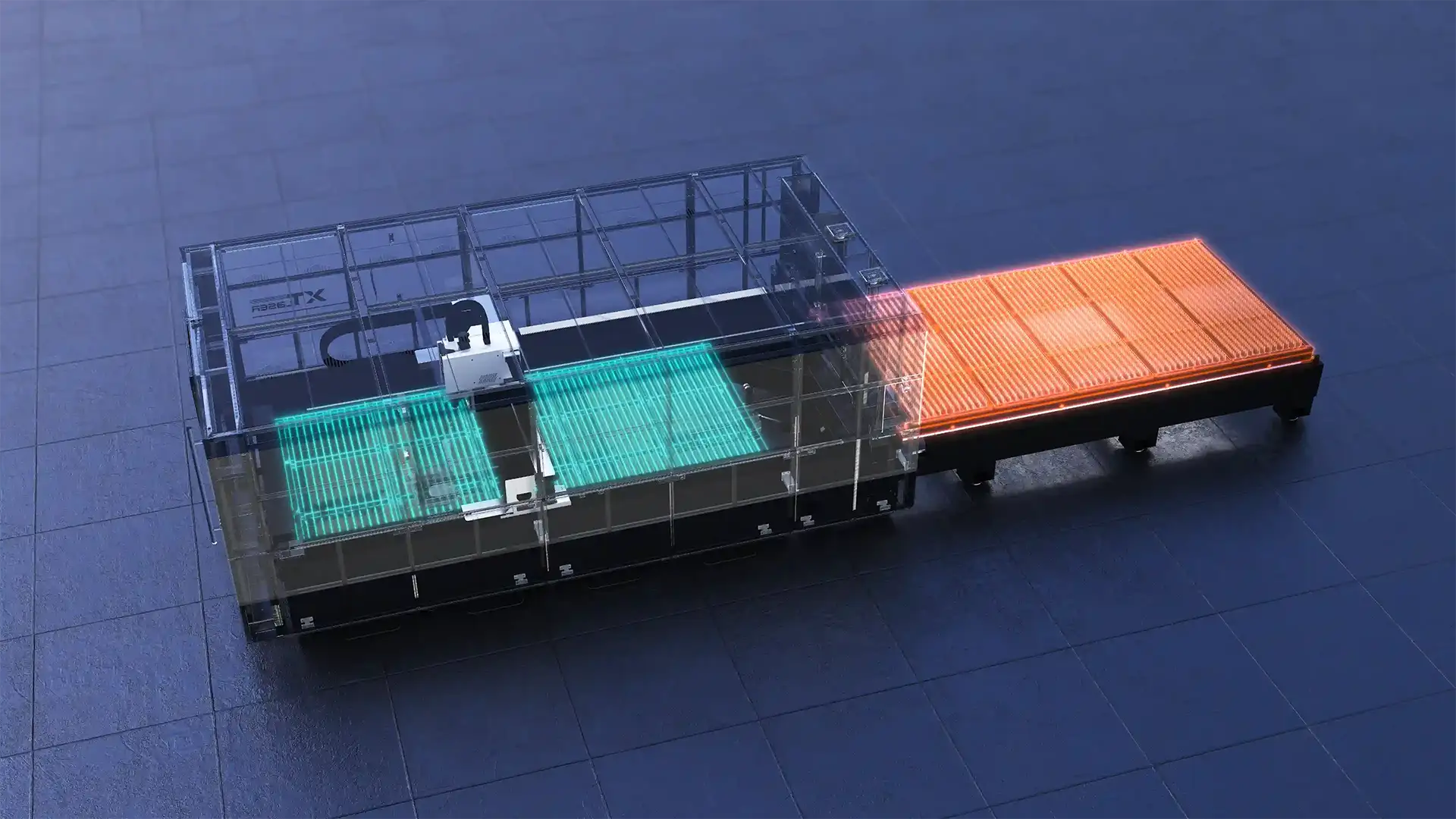

Dual-Station Intelligent Switching
Equipped with a high-efficiency dual-station automatic exchange table, it can load the next sheet material while cutting, seamlessly switching processing tasks, greatly reducing downtime and achieving efficient operation of "machines never stop even when people stop".

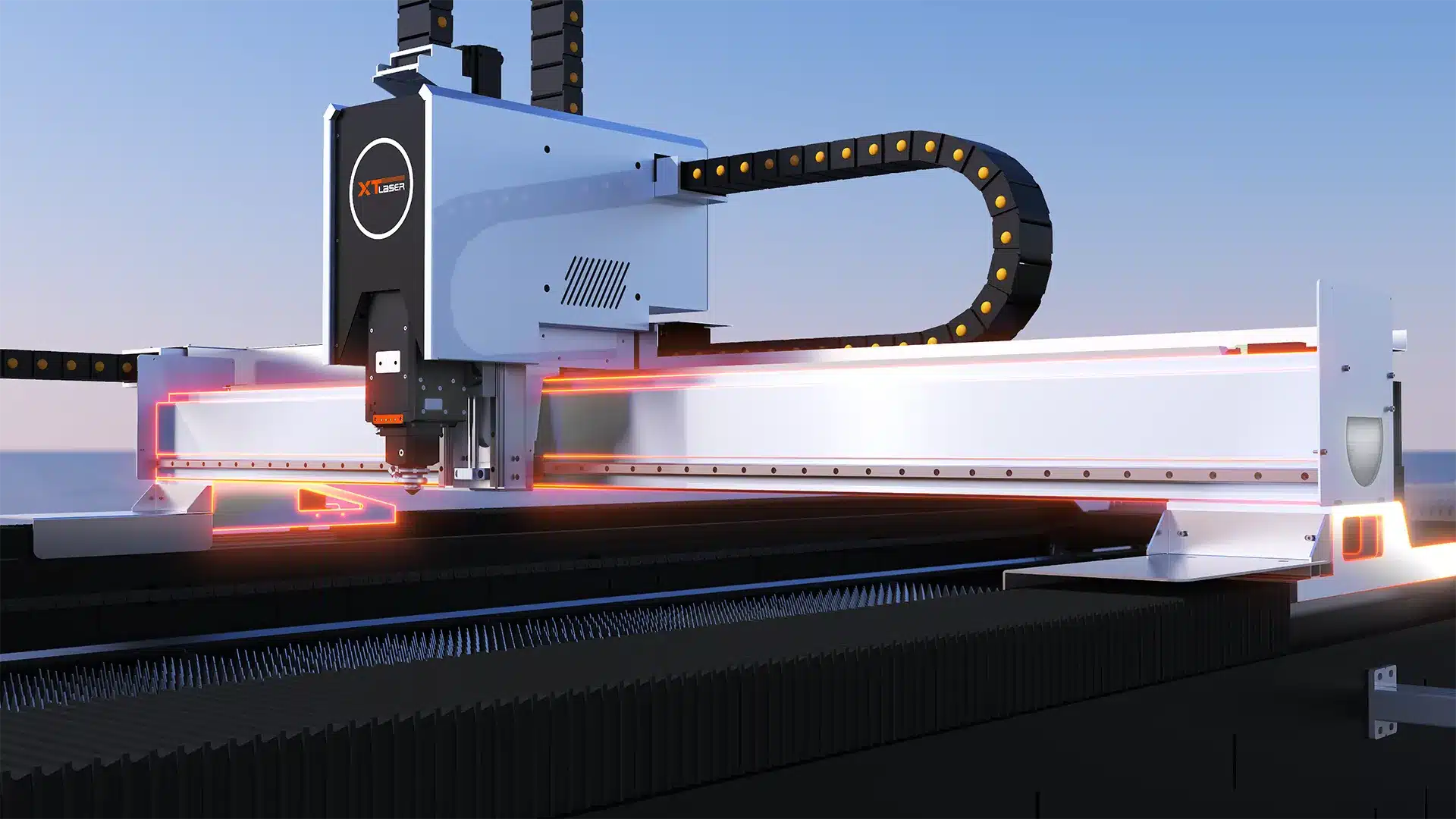

Zero DowntimeLightweight Crossbeam
The aerospace-grade aluminum crossbeam is rigid, lightweight, sturdy, and durable, fully leveraging the high dynamic performance of the equipment and improving processing efficiency.
Aerospace Grade

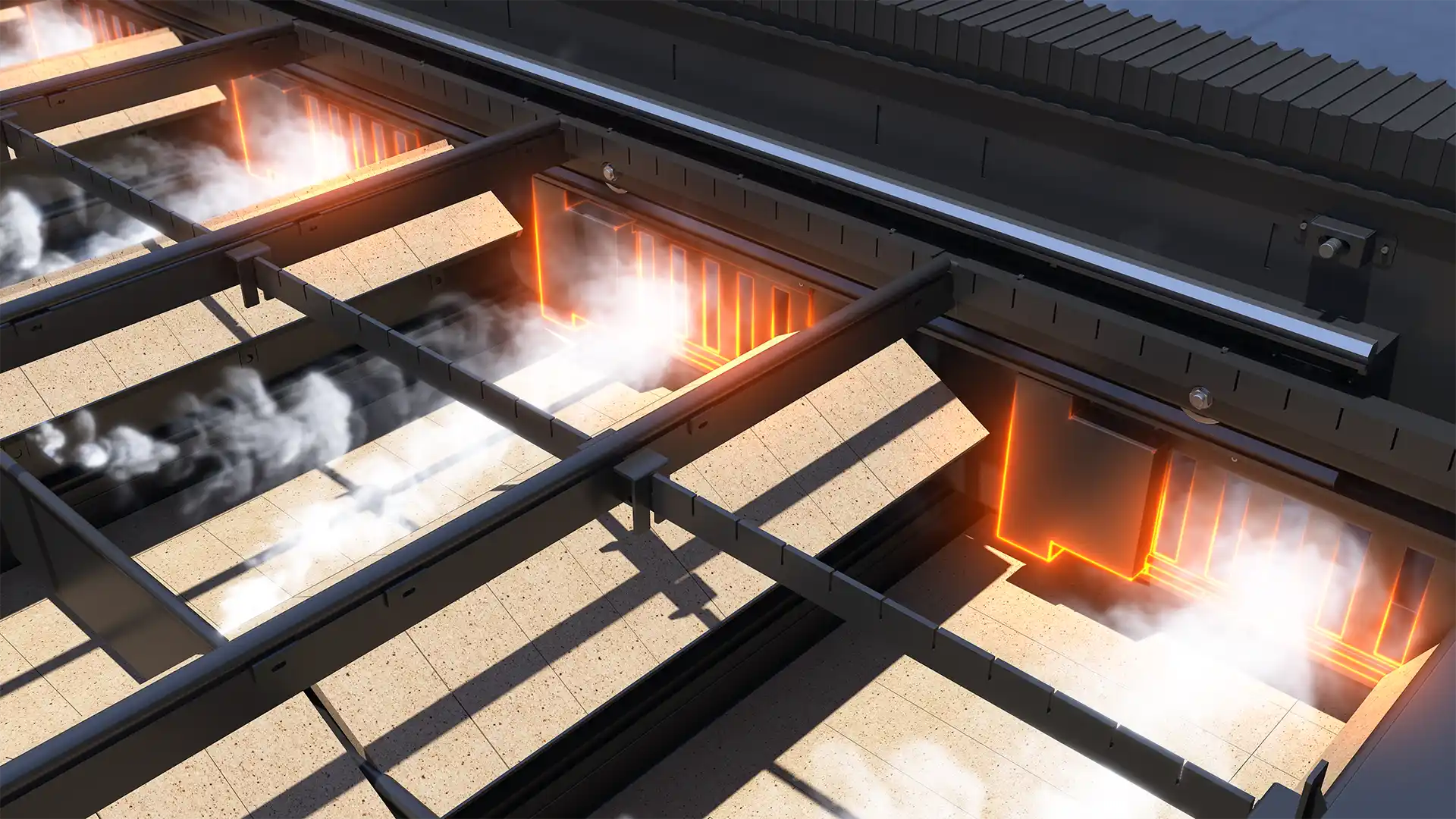

Efficient Partition Dust Removal
The single-zone, single-control dust removal system, combined with a 300×200mm ultra-large streamlined air duct, quickly removes slag and smoke, simultaneously dissipates heat and stabilizes temperature, suppresses thermal interference, and is clean and efficient.

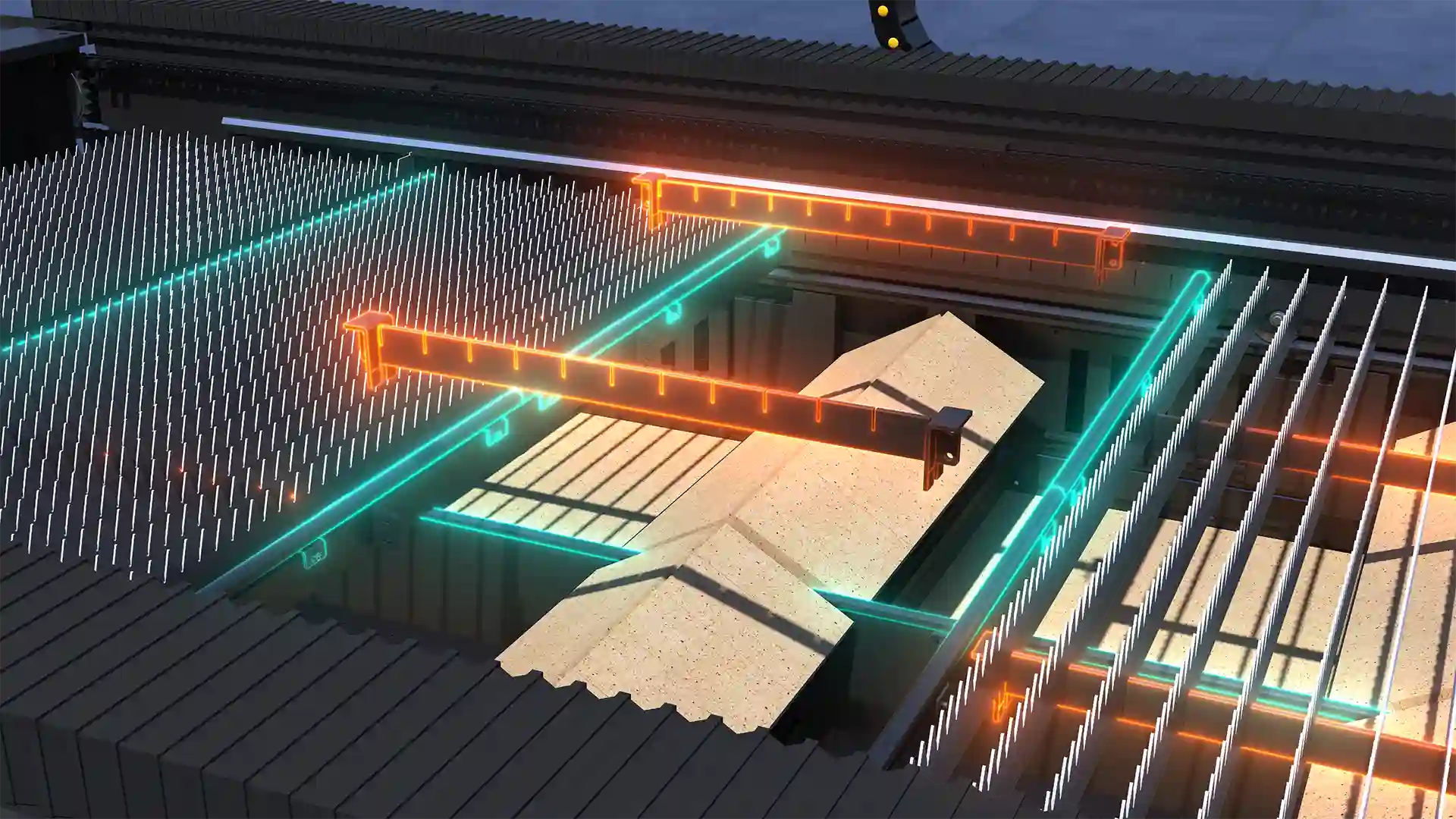

Compatible with Rectangular Tube Cutting
The round steel anti-burn design and detachable blade holder insulate against heat and prevent burn damage, making maintenance convenient and extending the life of the countertop.

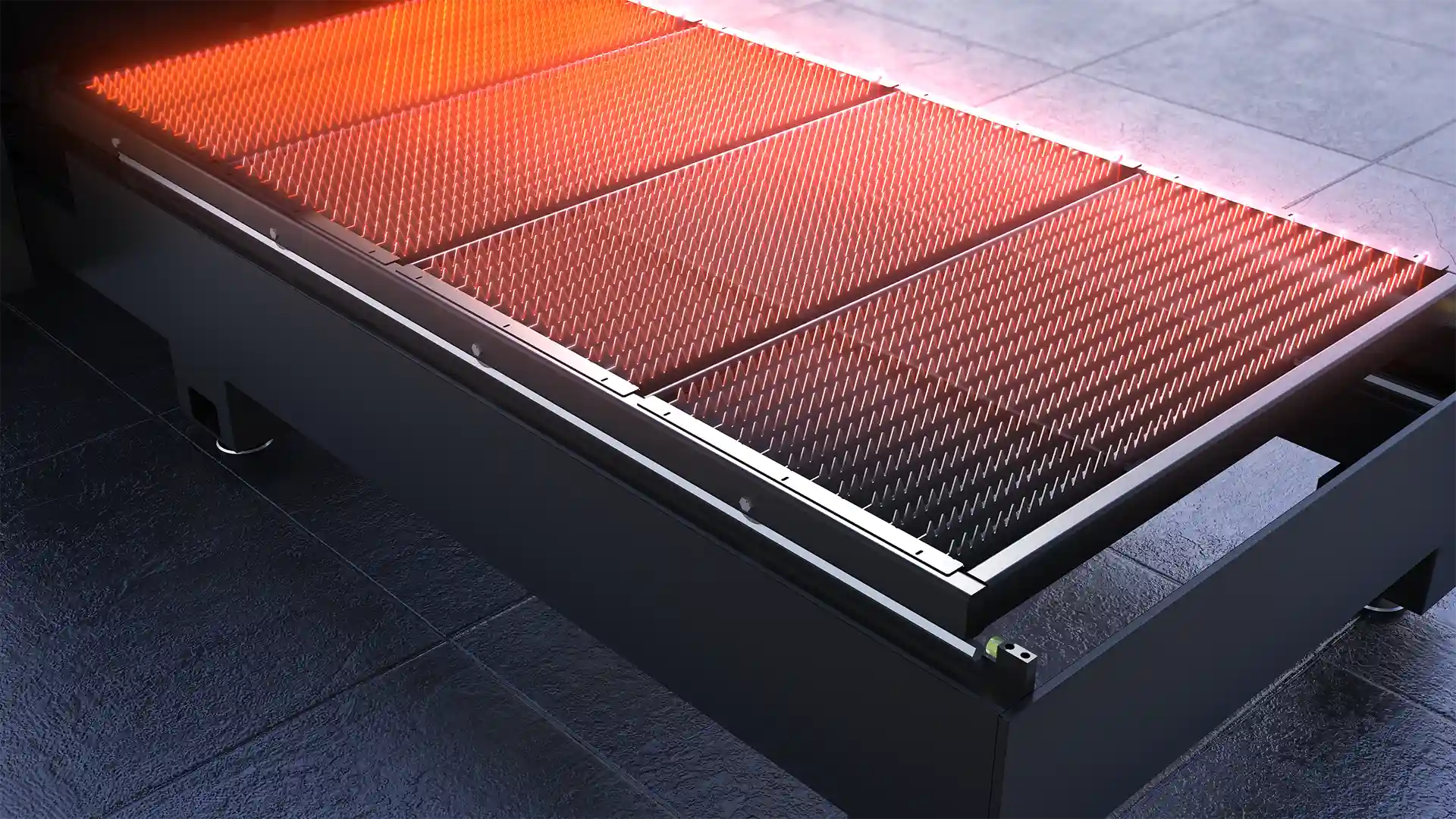

Integrated Straightedge Positioning
The blade strip and ruler are rigidly molded in one piece, resisting bending and deformation, and enabling rapid positioning of sheet metal.
Rapid Positioning

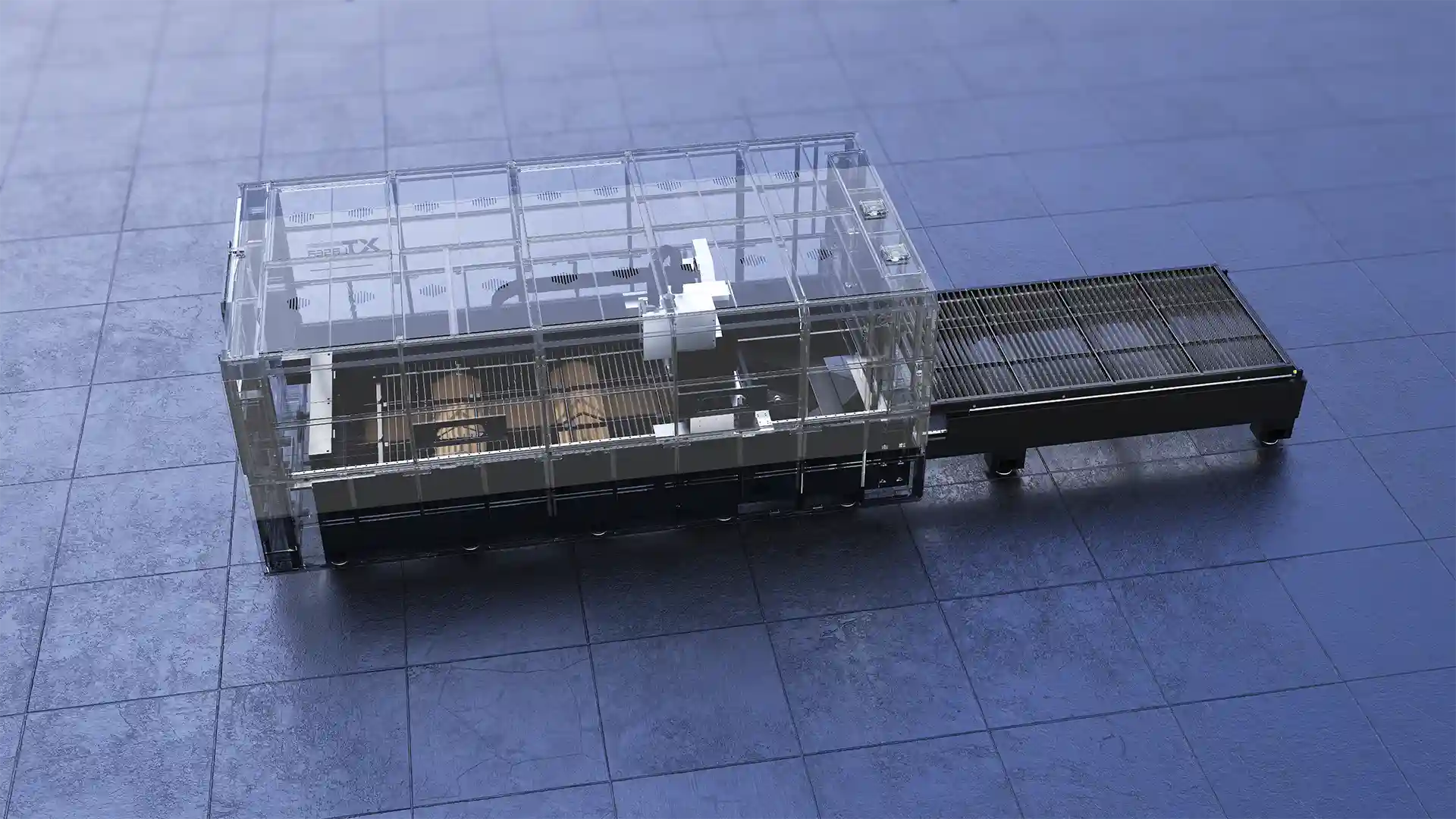

Fully Enclosed Design
The fully enclosed outer casing design meets European protection standards for safety and environmental friendliness, preventing sparks from flying, isolating laser radiation, and reducing the spread of smoke and dust.
European Standard
Smart Control
System
✦ AI-Powered Precision & Efficiency

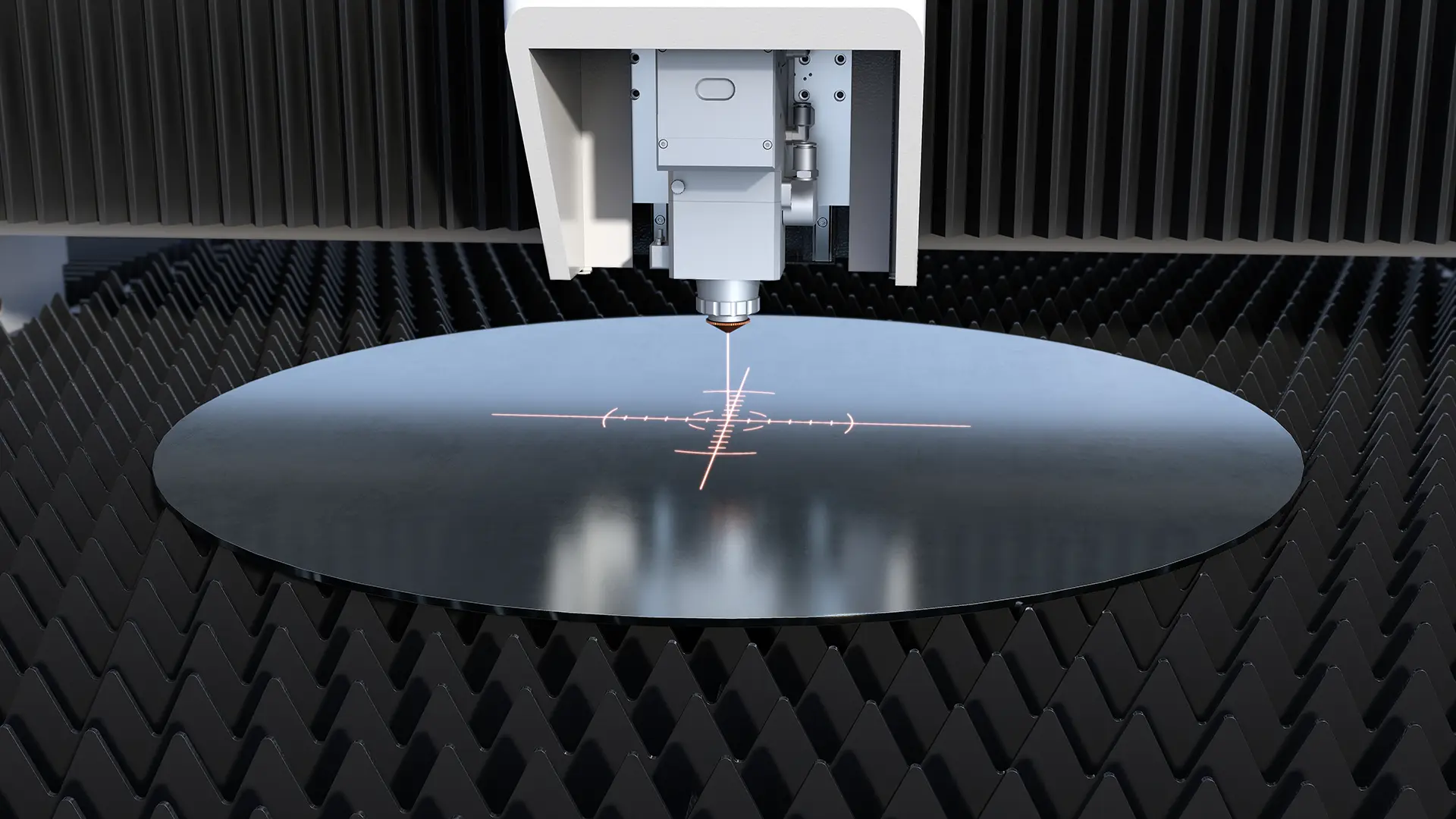

✦ Intelligent Centering
Automatically and intelligently locates the workpiece center point, reducing errors and improving yield.
↑ Yield Rate

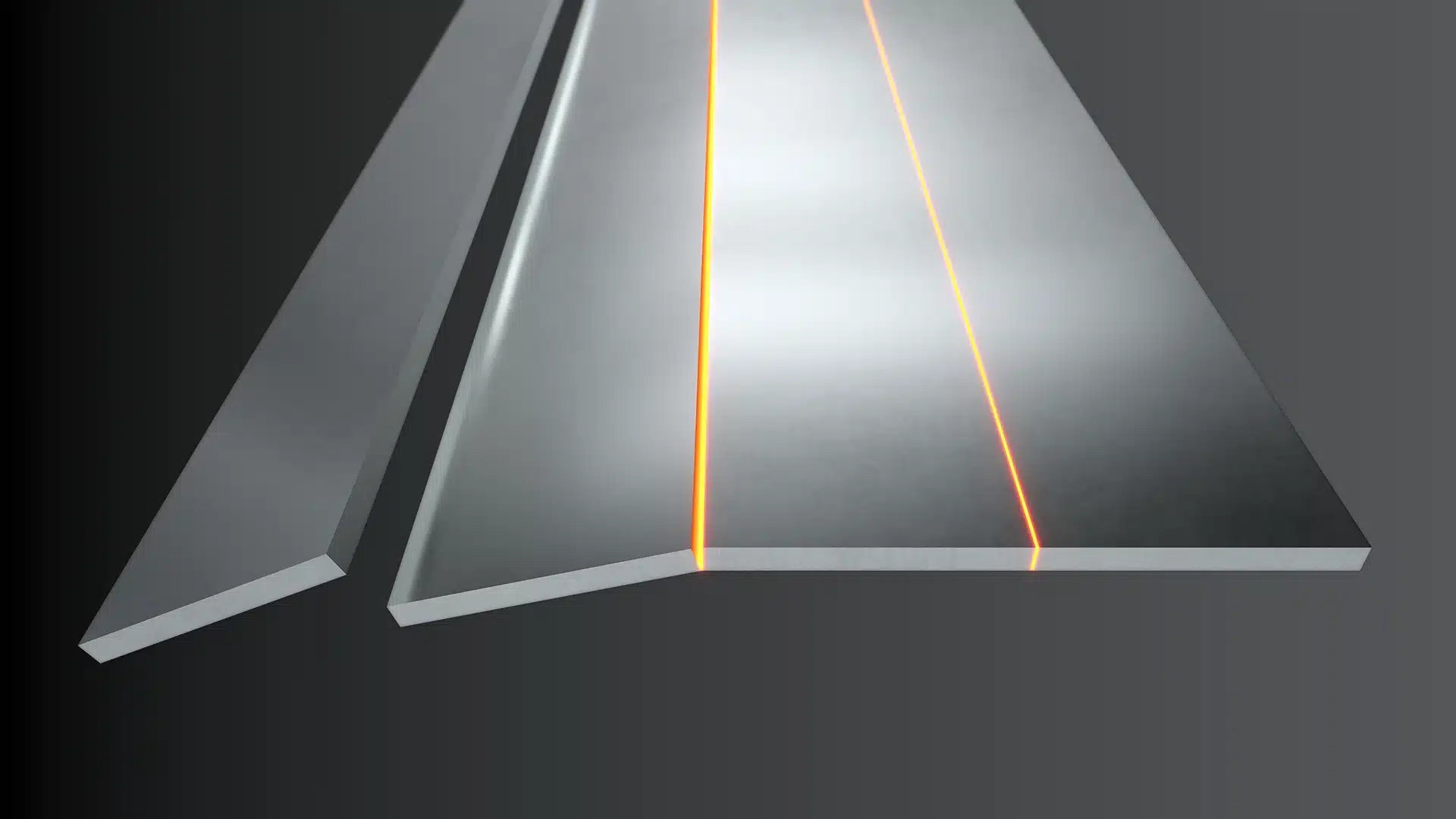

✦ Markless Micro-Connection
Ensures a smooth, seamless cut surface, enabling batch cutting and ensuring high-efficiency production.
Seamless Finish

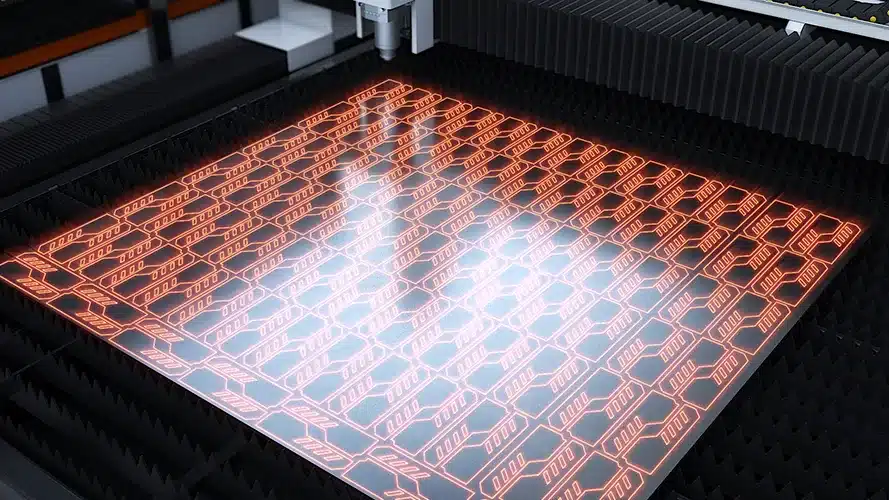

✦ Smart Nesting Software
Professional nesting software. Material utilization rate increased by 28% & reducing manual operation by 70%.
28% ↑ Material Use 70% ↓ Manual Work

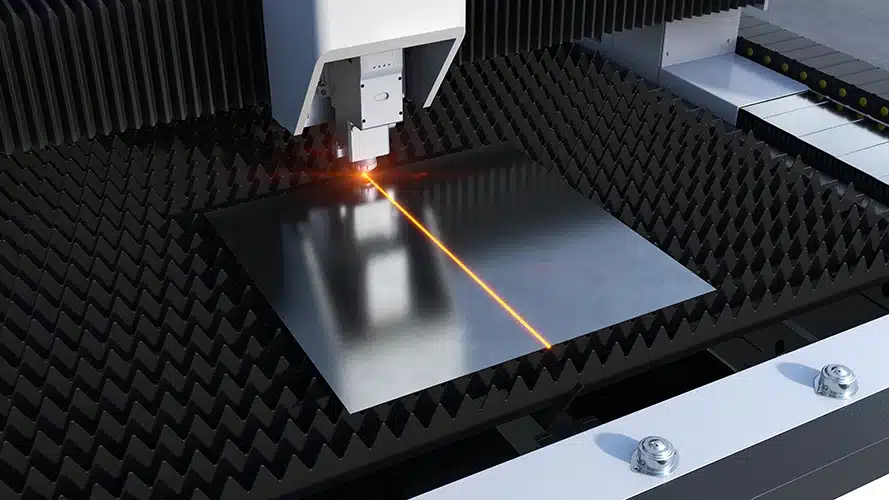

✦ One-Click Cut
Quickly cut the board and accurately recycle the remaining material for convenient secondary use.
Quick & Accurate⚡ Latest Equipment Parameter Table
● Standard
○ Optional
× Not Required | |||
| Item | Sub-item | XT-GPX1530 | XT-GPX2040 |
| Basic Information | |||
| Processing Area | — | 1530 × 3050 mm | 2030 × 4050 mm |
| Table Load Capacity | — | ≤12kw (1000kg) 30mm | ≤12kw (1900kg) 30mm |
| Machine Dimensions | — | 8900 × 2775 × 2350 mm | 10700 × 3285 × 2350 mm |
| Machine Weight | (varies by power) | 6200Kg (≤12KW) | 7500Kg (≤12KW) |
| Platform Exchange Time | fastest, no load | ≤25s | ≤30s |
| Max. Linkage Speed | — | 130 m/min | 130 m/min |
| Max. Linkage Acceleration | — | 3G | 3G |
| Low-pass Frequency | — | 8HZ | 8HZ |
| Feeding Height | — | 80mm | 80mm |
| Positioning Accuracy | — | ±0.03mm/m | ±0.03mm/m |
| Repeat Positioning Accuracy | — | ±0.03mm | ±0.03mm |
| Total Machine Power | |||
| with 12KW laser | Total Power / Current | 58KW / 116A | 58KW / 116A |
| with 6KW laser | Total Power / Current | 30KW / 60A | 30KW / 60A |
| with 3KW laser | Total Power / Current | 18KW / 36A | 18KW / 36A |
| Cutting Accuracy (1mm Stainless Steel) | |||
| Roundness of φ30mm Circle | — | ±0.1mm | ±0.1mm |
| Adjacent Sides Diff (□30mm) | size difference | ±0.05mm | ±0.05mm |
| Adjacent Sides Diff (□190mm) | size difference | ±0.05mm | ±0.05mm |
| Diagonal Size Diff (□190mm) | — | ±0.1mm | ±0.1mm |
| Mechanical Configuration | |||
| Gantry Structure | — | Aluminum Profile Gantry | Aluminum Profile Gantry |
| Guide Rail | HIWIN | Y-axis 35 | Y-axis 35 |
| Gear Rack | Xintian | ● | ● |
| Servo Motor & Drive | Bochu S9 Bus | X:1.7KW · Y:2.4KW · Z:0.75KW | X:2.4KW · Y:3.9KW · Z:0.75KW |
| Reducer | Gear Integrated | ● | ● |
| Auto Lubrication | — | ● | ● |
| Blade Thickness | ≤12000W | 3mm | 3mm |
| Firebricks | machine bed & cart | ● ≥6KW | ○ <6KW | ● ≥6KW | ○ <6KW |
| Zoned Dust Removal | — | ● | ● |
| Fully Enclosed Cover | protective | ● | ● |
| Electrical Configuration | |||
| Main Electrical | Siemens | ● | ● |
| Control System | + Cutting Head | <6KW: 2000E+B3 6KW: 4000E+B4 12KW: 6000E+B4 | <6KW: 2000E+B3 6KW: 4000E+B4 12KW: 6000E+B4 |
| Nesting Software | Networked | ● | ● |
| Oxygen Proportional Valve | — | ● | ● |
| Monitor Size | — | 27″ | 27″ |
| Intelligent Configuration | |||
| Laser Cutting Database | process | ● | ● |
| Gas Low-Pressure Alarm | auxiliary | ● | ● |
| Nitrogen Proportional Valve | — | ● ≥12KW | ○ ≤6KW | ● ≥12KW | ○ ≤6KW |
| Side Blowing Cooling | — | ● ≥6KW | ○ <6KW | ● ≥6KW | ○ <6KW |
| Pneumatic Lifting Door | light shield | ● | ● |
| Auxiliary Configuration | |||
| Water Chiller | Xintian | ● | ● |
| Dust Removal | centrifugal fan | ● 5.5KW | ● 5.5KW |
| Dust Collector | Xintian (no fan) | ○ optional | ○ optional |
| Optional Configuration | |||
| Xintian Dust Collector | see auxiliary table | ○ | ○ |
| WIFI Function | — | ○ | ○ |
| Xintian Air Compressor | see auxiliary table | ○ | ○ |
| Xintian Voltage Regulator | see auxiliary table | ○ | ○ |
| Electrical Cabinet (AC) | with air conditioner | ○ | ○ |
| Safety Goggles | Overseas | ● | ● |
| Safety Goggles | Domestic | ○ | ○ |
| Foundation Plate & Bolts | expansion | ○ | ○ |
Frequently Asked Questions
What materials can fiber laser cutting machines cut?
Most metals: stainless steel, carbon steel, aluminum, copper, alloy steel, galvanized sheet, titanium, etc. Used in sheet metal, kitchenware, aerospace, auto parts, construction.
Advantages over other cutting methods?
High precision, narrow kerf, smooth & burr-free, small heat-affected zone, no secondary grinding. Non-contact, no mechanical stress or tool wear.
What software & file formats are compatible?
Supports LightBurn, AutoCAD, etc. Compatible with DXF, SVG, AI, EPS, DWG, PDF, PLT.
How to choose laser power?
Depends on material and thickness. Not sure? Contact us for the right power recommendation.
Maintenance tips for laser cutting machine?
Clean optics & nozzle regularly. Check cooling system (water/air). Lubricate rails & screws. Clean dust filter & soot residue.
Is it difficult to operate? Need training?
HI-NEXT machines have visual interface and detailed manual. Easy for beginners. Read safety guide or contact our technicians online.
What is the lead time for a metal laser cutter?
Usually 4–6 weeks, depending on equipment and custom needs. We provide a detailed schedule at order confirmation.
