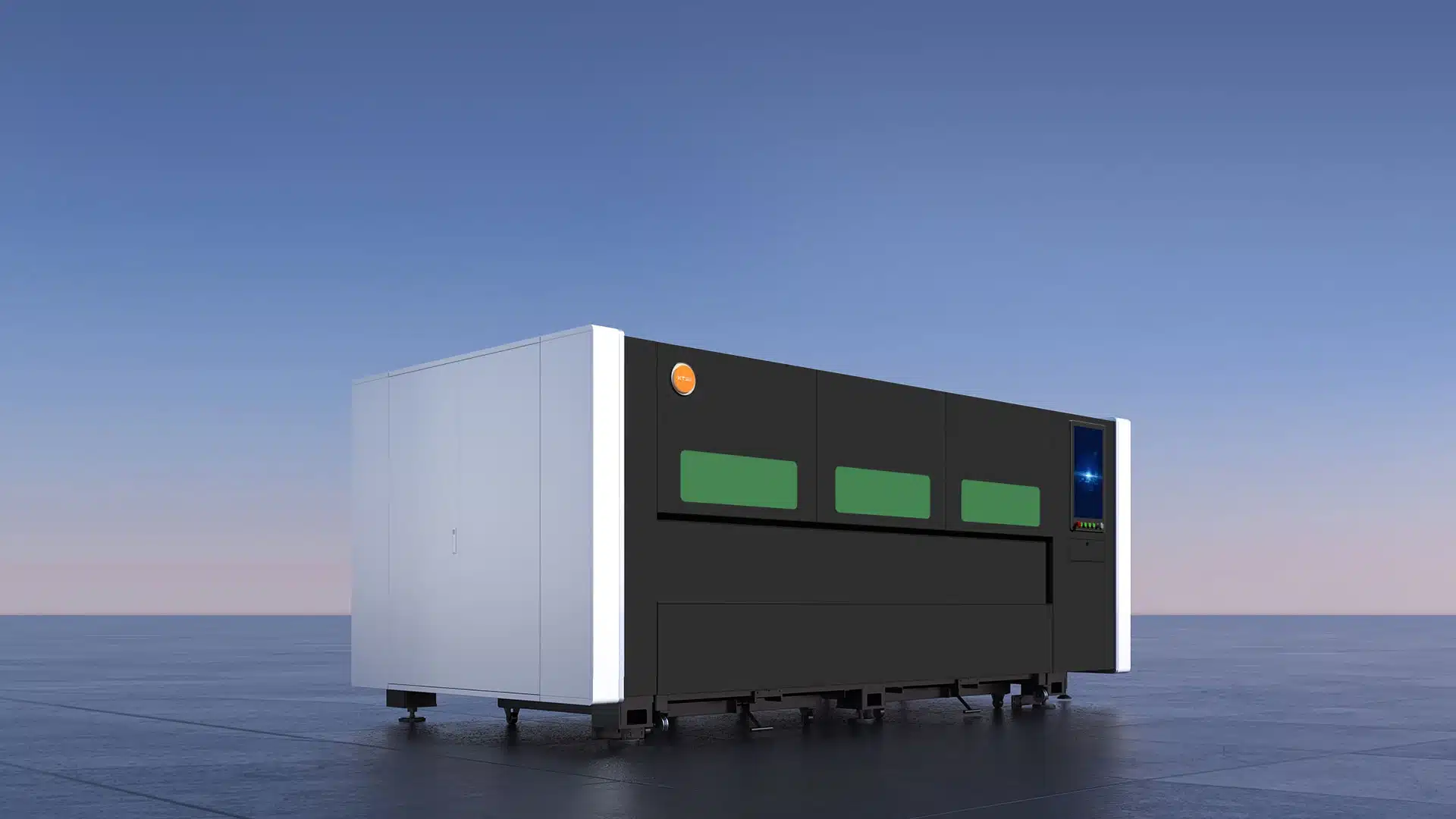

A Series Single Platform Fully Enclosed Sheet Metal Laser Cutting Machine
Flagship | Single-platform enclosed sheet metal laser cutting machine
Material Type
Flagship Feature
Single Platform Fully Enclosed
✦ 3000W–12000W Sheet Metal Laser Cutting Machine

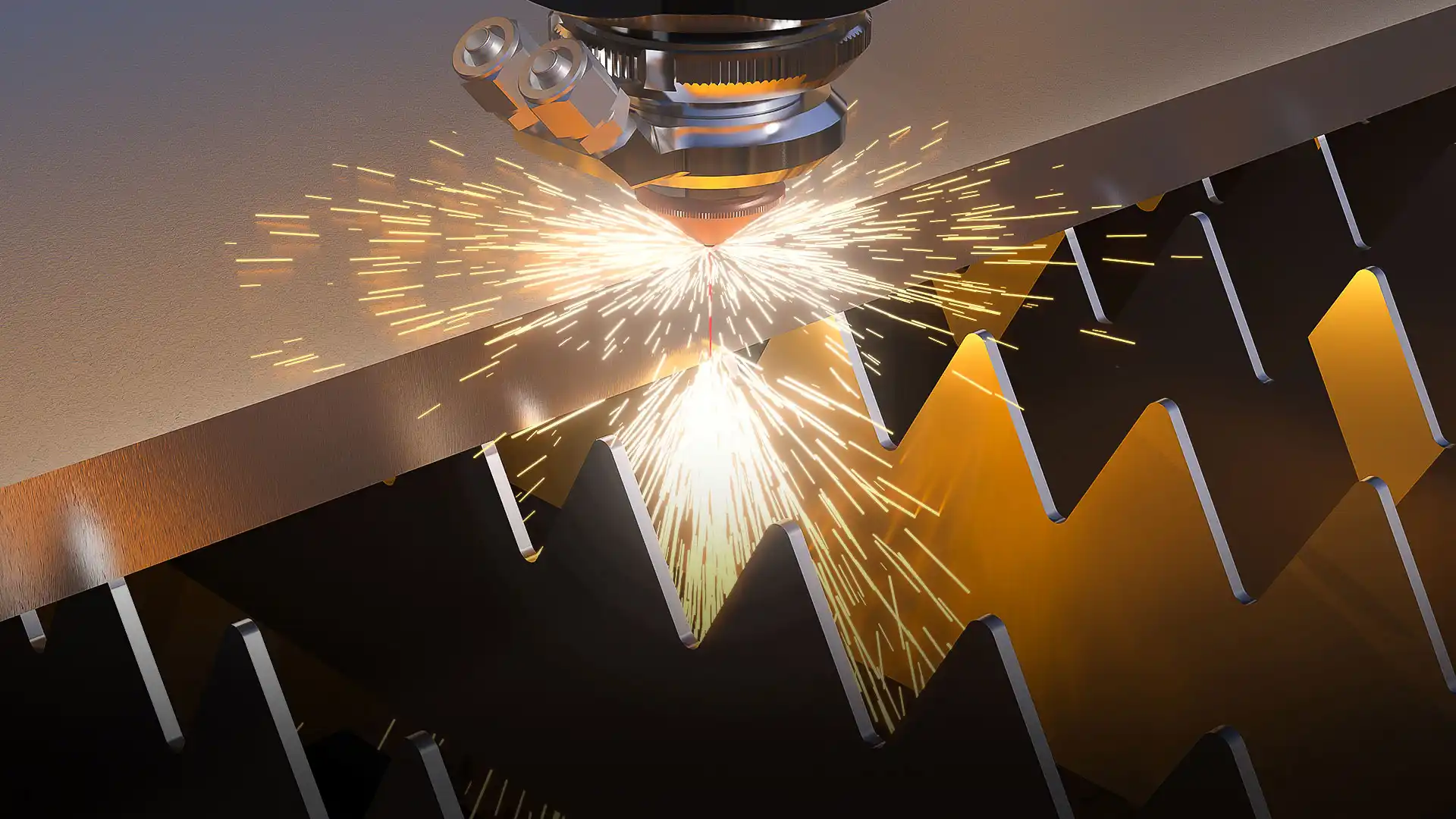

Stable Performance, Efficient & Precise Cutting
Efficiently processes stainless steel and carbon steel from 1–25mm. Precise energy control ensures smoother cutting edges and consistent, high-quality processing.

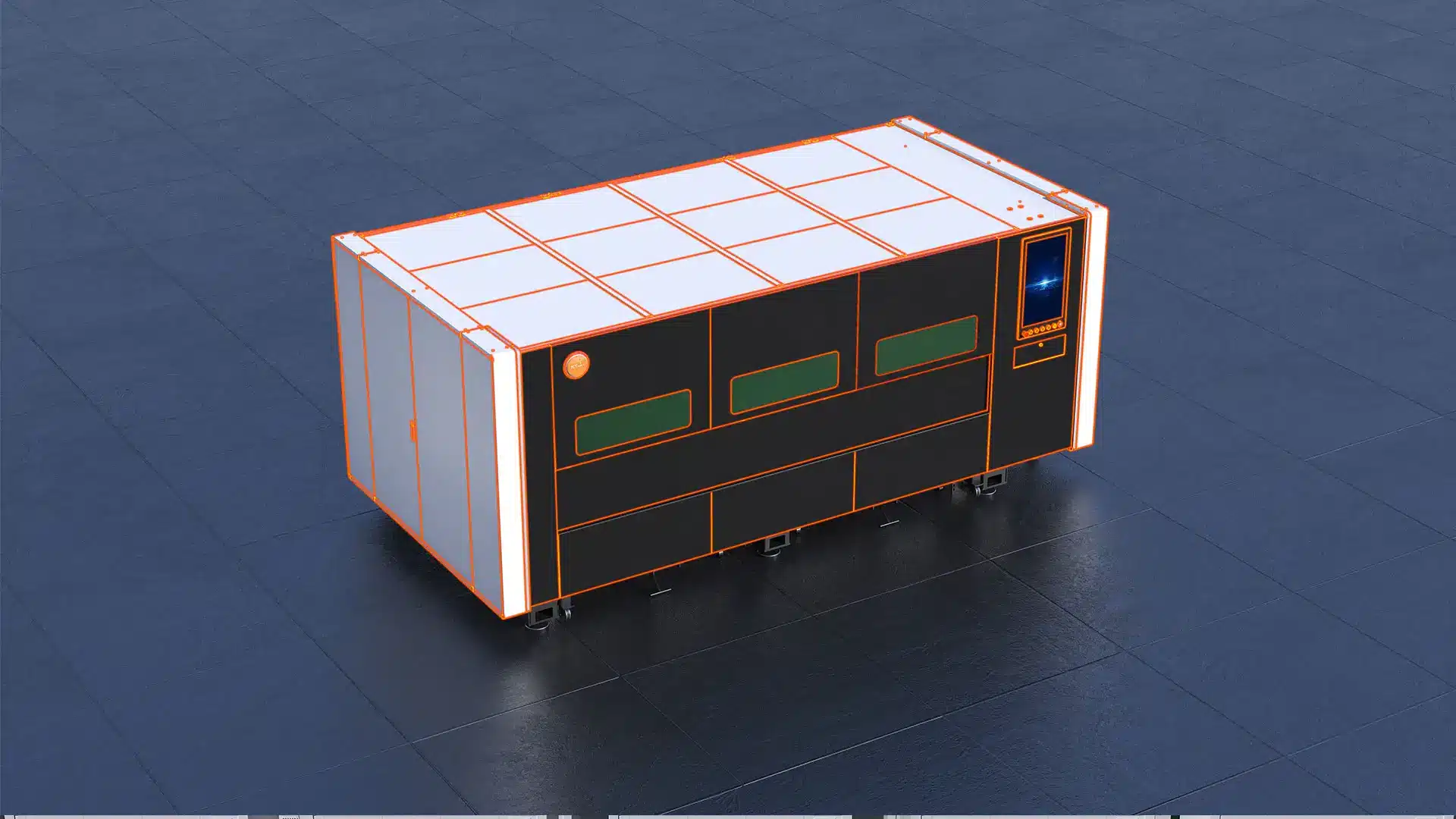

Fully Enclosed Design — Safe & Environmentally Friendly
The fully enclosed housing design meets European protection standards for safety and environmental protection, preventing sparks, isolating laser radiation, and reducing smoke and dust spread.
European Standard

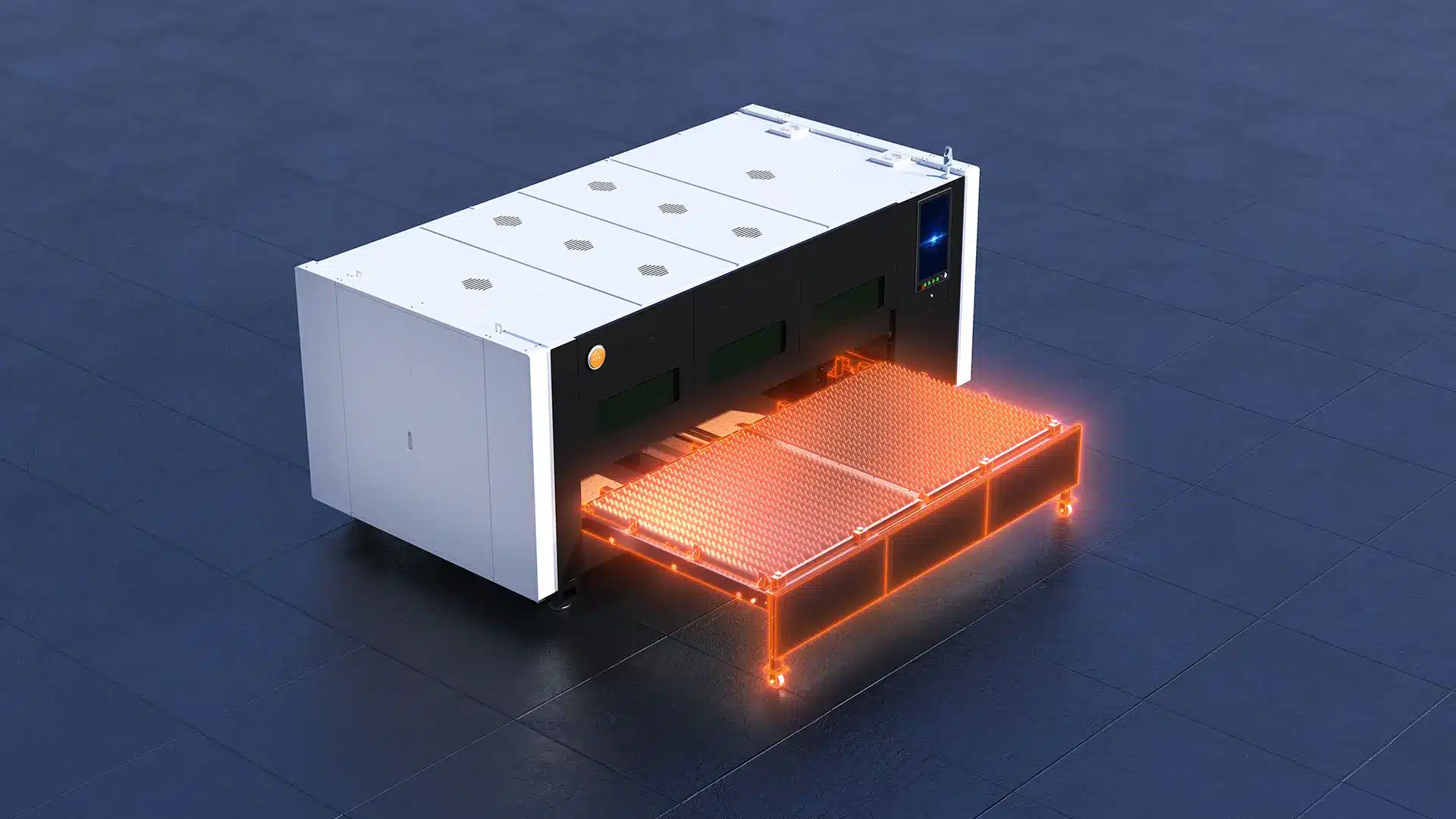

Fully Automatic Pull-Out Countertop
No need to worry about feeding materials; the entire process is pulled out without bending over or shoving. Unloading materials is convenient; the entire workbench can be reached with an outstretched hand.
Zero Bending

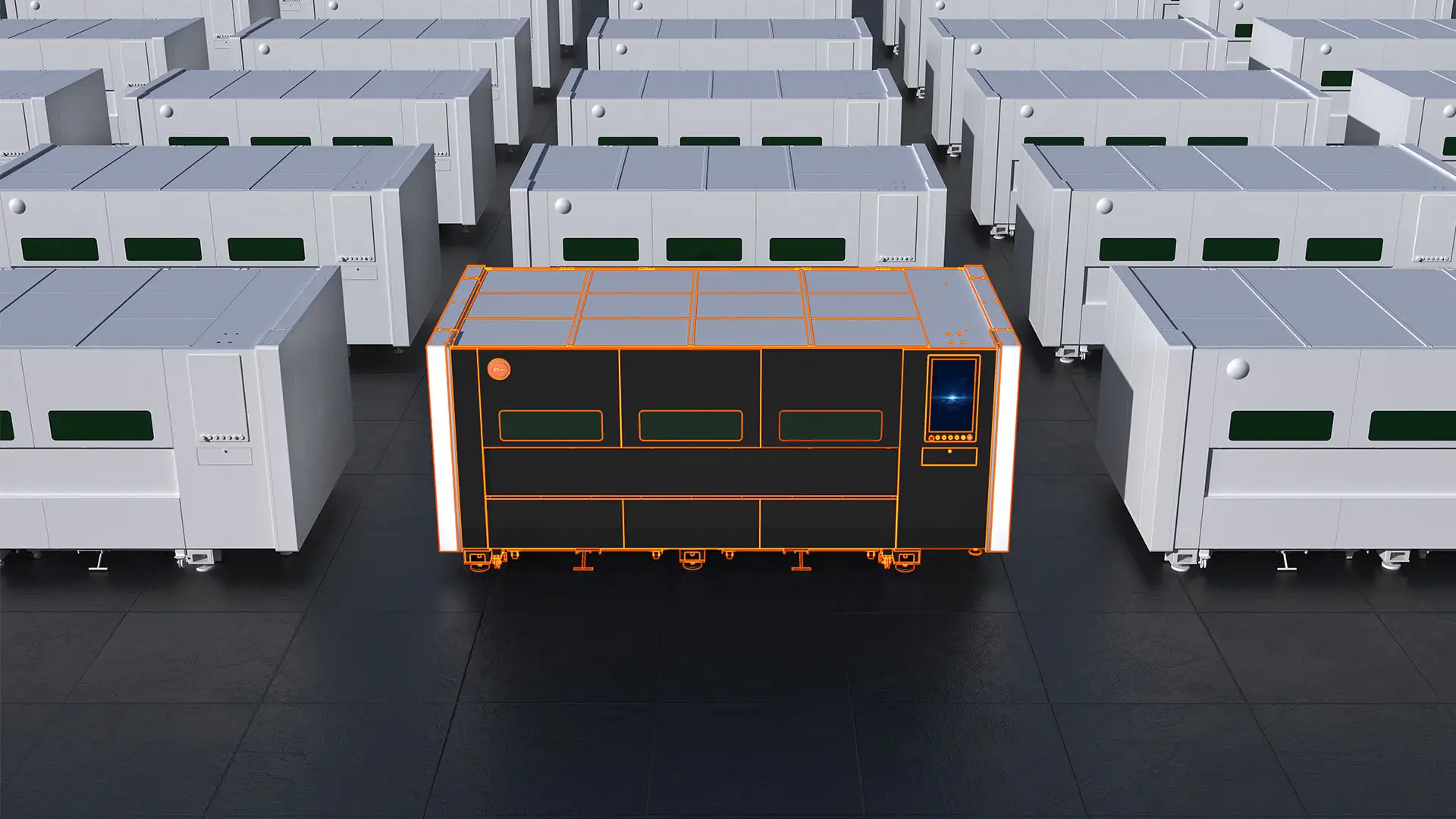

Compact Structure Saves Space
Reasonable arrangement of the internal structure, fully expanded less than 20 square meters, small footprint, flexible placement, saving factory space.
<20 m²

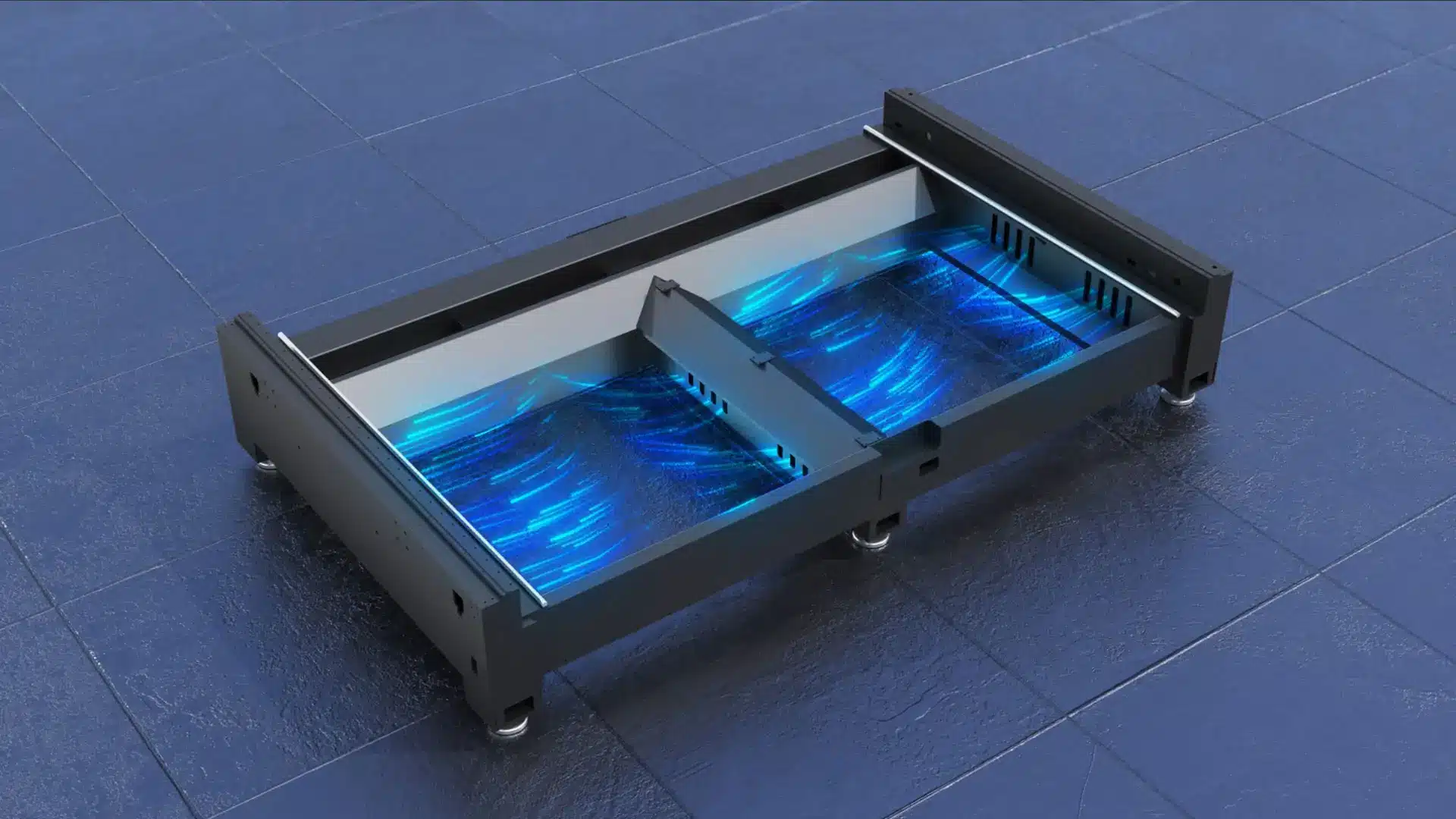

Partition Dust Removal
Unique four-zone dust removal system with adaptive intelligent activation reduces smoke and dust pollution and lowers equipment failure rate, enabling environmentally friendly operation and efficient processing.
4-Zone SystemOne-Button Operation — Automatic Lifting
One-touch automatic door opening and lowering eliminates manual operation, ensuring safe operation and efficient processing.
Touch-Free

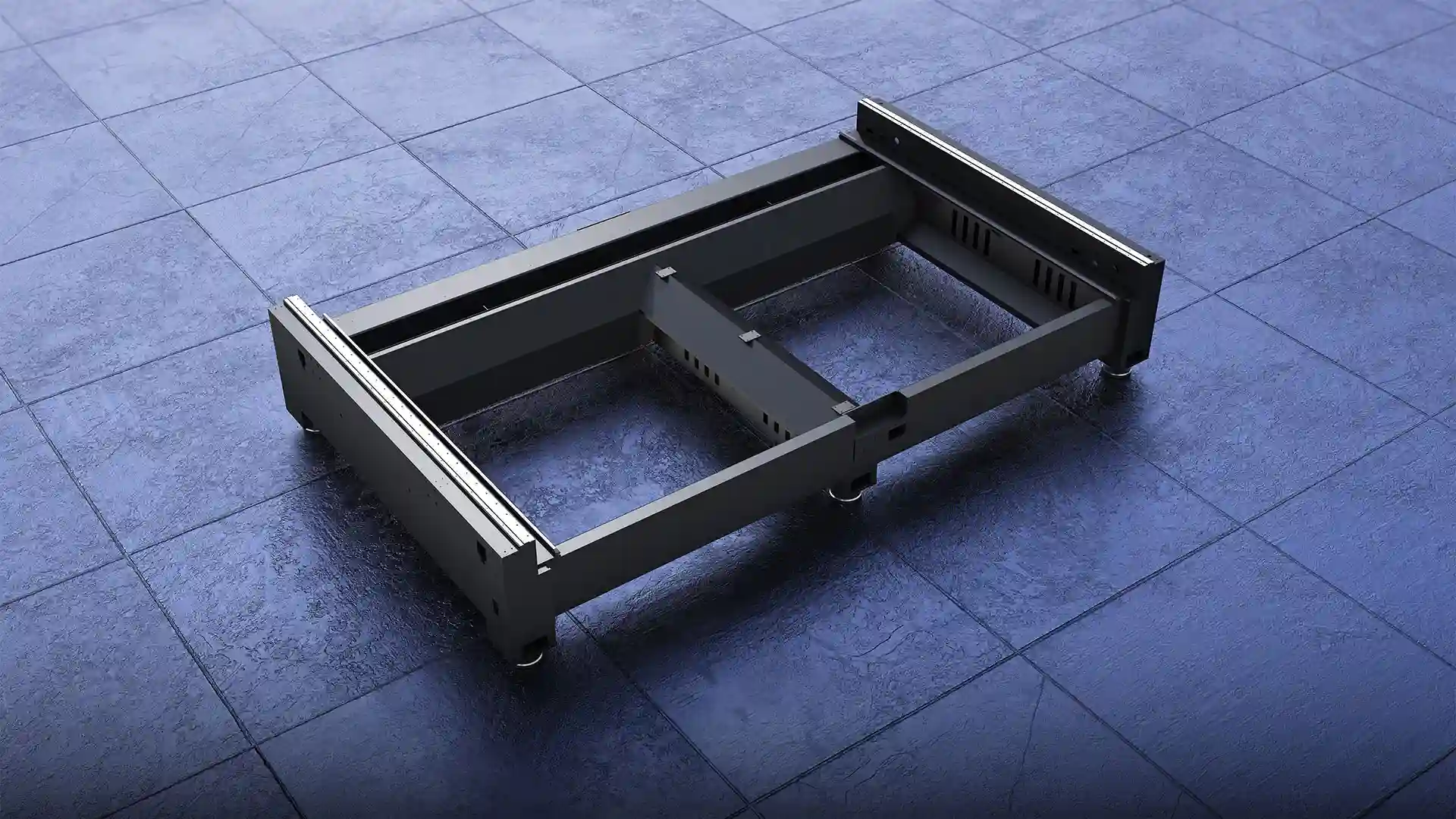

A Rock-Solid Foundation for Efficient Cutting
Employing sheet metal welding and splicing technology, the structure features a scientific layout, with corner welding enhancing overall stability. A balanced configuration ensures even stress distribution on both sides, providing a robust guarantee for long-term, high-precision machining.
Welded Stability

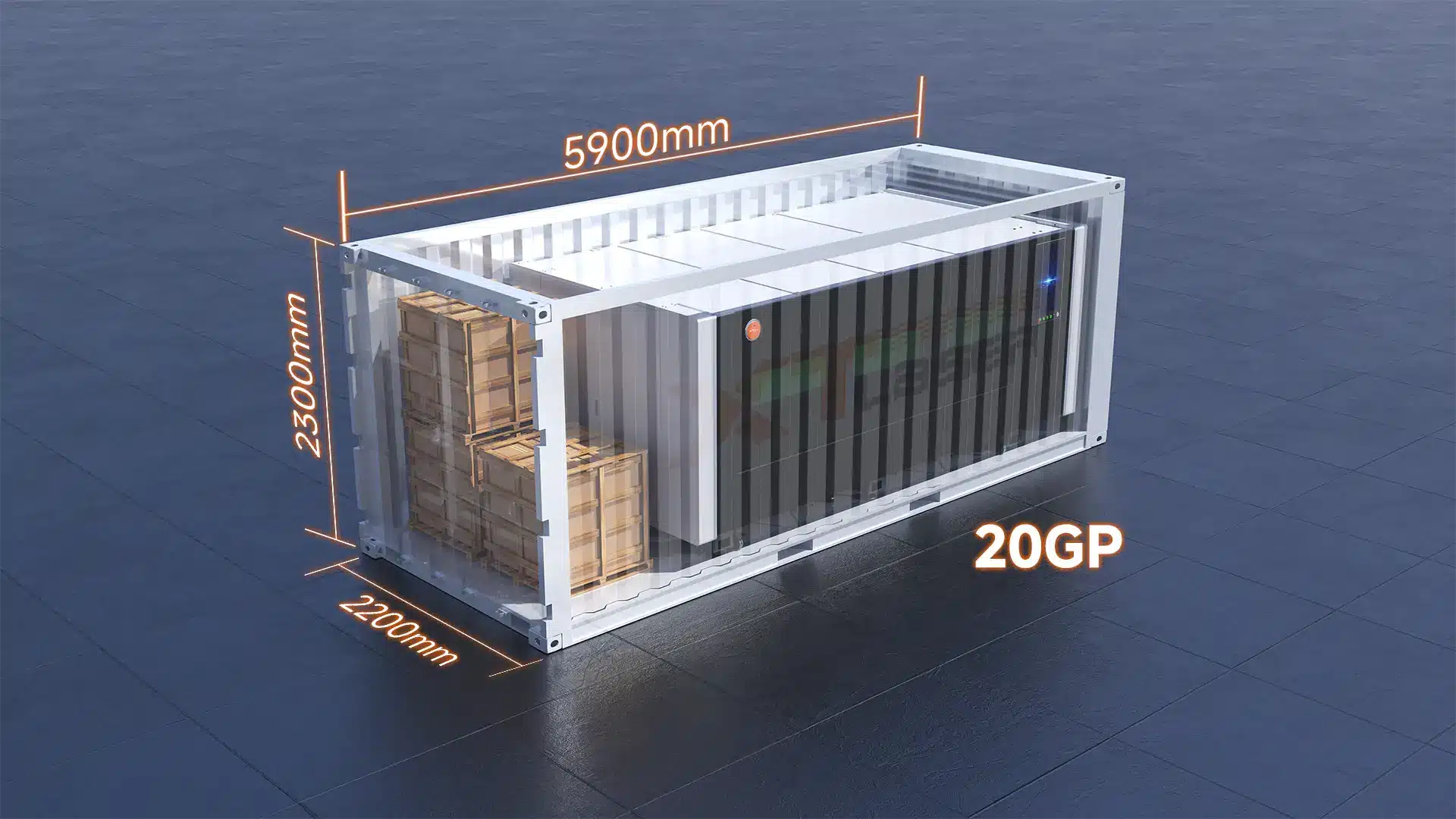

Complete Machine Delivery
The whole machine is delivered — no on-site installation is required. It can be cut after it is powered on at the factory.
Plug & Cut
Smart Control
System
✦ AI-Powered Precision & Efficiency
✦ Intelligent Centering
Automatically and intelligently locates the workpiece center point, reducing errors and improving yield.
↑ Yield Rate
✦ Markless Micro-Connection
Ensures a smooth, seamless cut surface, enabling batch cutting and ensuring high-efficiency production.
Seamless Finish
✦ Smart Nesting Software
Professional nesting software. Material utilization rate increased by 28% & reducing manual operation by 70%.
28% ↑ Material Use 70% ↓ Manual Work
✦ One-Click Cut
Quickly cut the board and accurately recycle the remaining material for convenient secondary use.
Quick & AccurateSmart Upgrades
🌡️ Intelligent Temperature Control
Dynamically adjust the temperature to ensure efficient production.
✦ Energy Optimized🔍 Manual Pull-out Workbench
A cost-effective, full-width pull-out design that ensures ample space for easy material loading.
✦ Zero Waste

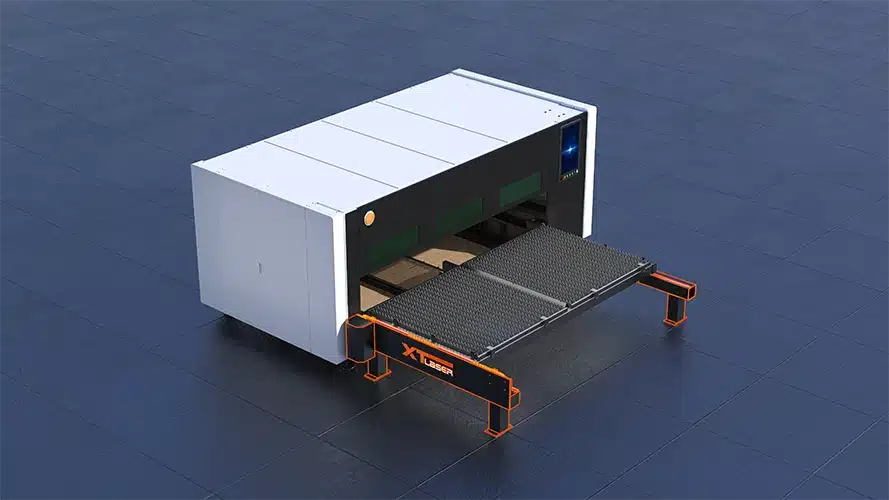

🛡️ High-Stability Sub-Frame
An enhanced motion support platform provides a reliable foundation, significantly improving cutting performance on thicker plates.
✦ Safety First
⚡ Independent Electric Cabinet
Uniform heat dissipation and easy maintenance.
✦ Reliable| Item | Sub-item | XT-AL6060 (Linear Motor) | XT-A6060 (Ball Screw) | XT-A1309 | XT-A1510 | XT-A1530-V2.0 |
|---|---|---|---|---|---|---|
| ● standard │ ○ optional │ × not required | ||||||
| Basic Info | Processing Area | 600×600mm | 600×600mm | 1300×900mm | 1500×1000mm | 1530×3050mm |
| Table Load Capacity | 50Kg | 50kg | 110Kg | 140Kg | 900KG (25mm Max) | |
| Machine Dimensions | 2180×1610×2000 | 1950×1450×2000 | 2420×2230×2230 | 3170×2010×2200 | 4649×2260×1950 | |
| Machine Weight | 1800kg | 1600kg | 2000KG | 2900KG | 3600KG | |
| Max Linkage Speed | 80m/min | 60m/min | 90m/min | 110m/min | 120m/min | |
| Max Linkage Acceleration | 1.0G | 1.0G | 1G | 1G | 0.8G | |
| Positioning Accuracy | ±0.01mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | |
| Repeat Positioning Accuracy | ±0.004mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | |
| Overall Power | 12KW Laser | × | × | × | × | 55KW/110A |
| 6KW Laser | × | × | × | 30KW/60A | 30KW/60A | |
| 3KW Laser | 15KW/36A | 15KW/36A | 15KW/36A | 20KW/40A | 20KW/40A | |
| 2KW Laser | 12KW/44A | 12KW/44A | 12KW/44A | 17KW/44A | 17KW/44A | |
| 1.5KW Laser | 10KW/36A | 9KW/35A | 9KW/35A | 10KW/39A | 10KW/39A | |
| Cutting Accuracy (1mm SS) | Roundness φ30mm | ≤0.1mm | ≤0.1mm | ≤0.1mm | ≤0.1mm | ≤0.1mm |
| Adjacent Side □30mm | ≤0.05mm | ≤0.05mm | ≤0.05mm | ≤0.05mm | ≤0.05mm | |
| Adjacent Side □190mm | ≤0.05mm | ≤0.05mm | ≤0.05mm | ≤0.05mm | ≤0.05mm | |
| Diagonal □190mm | ≤0.1mm | ≤0.1mm | ≤0.1mm | ≤0.1mm | ≤0.1mm | |
| Mechanical Config | Bed Structure | Tube Welded | Tube Welded | Tube Welded | Plate Welded | Plate Welded |
| Beam Structure | Aluminum Module | Aluminum Module | Aluminum Beam | Aluminum Beam | Aluminum Beam | |
| Guide Rail | ● | ● | XT Guide Rail | XT Guide Rail | XT Guide Rail | |
| Rack | × | × | XT Rack | XT Rack | XT Rack | |
| Servo Motor | Linear (<3.5kw) | Weichuang Bus | Weichuang Bus | Weichuang Bus | Weichuang Bus | |
| Reducer | × | × | XT Reducer | XT Reducer | XT Reducer | |
| Auto Lubrication | ● | ● | ● | ● | ● | |
| Blade Thickness | 3mm | 8mm (Alum) | 3mm | 3mm (≤6KW) | 3mm(≤6KW);5mm(>6KW) | |
| Bed Firebricks | × | × | × | ○ <6KW / ● ≥6KW | ○ <6KW / ● ≥6KW | |
| Pull-out Console | × | × | × | ● (Electric) | ● (Electric) | |
| Marble Tabletop | ● | ● | × | × | × | |
| Zoned Dust Removal | × | × | × | × | ● | |
| Full Enclosure | ● | ● | ● | ● | ● | |
| Electrical Config | Main Electrical | × | × | ●Chint/Siemens | ●Chint/Siemens | ●Chint/Siemens |
| Control System (<6KW) | ● 2000E+B3 | ● 2000E+B3 | ● 2000E+B3 | ● 2000E+B3 | ● 2000E+B3 | |
| Control System (6KW) | × | × | × | ● 4000E+B4 | ● 4000E+B4 | |
| Control System (12KW) | × | × | × | × | ○ 8000+B6 | |
| Nesting Software | ● Networked | ● Networked | ● Networked | ● Networked | ● Networked | |
| Proportional Valve | ● Aventics/Xingyu | ● Aventics/Xingyu | ● Aventics/Xingyu | ● Aventics/Xingyu | ● ≤6KW / ● Aventics >6KW | |
| Monitor Size | 18.5" | 18.5" | 21.5" | 24" | 27" | |
| Smart Config | Cutting Database | ● | ● | ● | ● | ● |
| Gas Low Pressure Alarm | ● (System) | ● (System) | ● (System) | ● (System) | ● ≤6KW / External >6KW | |
| Nitrogen Proportional Valve | ○ | ○ | ○ | ○ | ○ ≤6KW / ● ≥12KW | |
| Side Blowing Cooling | ○ <6KW / ● ≥6KW | ○ <6KW / ● ≥6KW | ○ <6KW / ● ≥6KW | ○ <6KW / ● ≥6KW | ○ <6KW / ● ≥6KW | |
| Auxiliary Config | Water Chiller | XT Chiller | XT Chiller | XT Chiller | XT Chiller | XT Chiller |
| Dust Removal Equipment | ● 1.5kw Fan | ● 1.5kw Fan | ● 1.5kw Fan | ● 1.5kw Fan | ● 5.5kw Fan | |
| Optional Config | Dust Collector | ○ | ○ | ○ | ○ | ○ |
| WIFI Function | ○ | ○ | ○ | ○ | ○ | |
| Air Compressor | ○ | ○ | ○ | ○ | ○ | |
| Voltage Stabilizer | ○ | ○ | ○ | ○ | ○ | |
| Cabinet (AC) | ○ | ○ | ○ | ○ | ○ | |
| Goggles (Overseas) | ● | ● | ● | ● | ● | |
| Goggles (Domestic) | ○ | ○ | ○ | ○ | ○ | |
Application Field
Versatile laser cutting solutions for diverse industries
Automobile Manufacturing
Precision cutting for chassis, body panels & components
Advertising Signage
Intricate lettering, logos & display structures
Construction Machinery
Heavy-duty parts, booms & structural frames
Elevator Production
Doors, panels, rails & precision components
Kitchen Cabinets
Precision cut panels, doors & modular fittings
Medical Devices
High-precision surgical instruments & equipment
Sample Display
Precision laser cutting results across various materials
Sample 01
Sample 02
Sample 03
Sample 04
Sample 05
Sample 06
Frequently Asked Questions
What materials can fiber laser cutting machines cut?
Most metals: stainless steel, carbon steel, aluminum, copper, alloy steel, galvanized sheet, titanium, etc. Used in sheet metal, kitchenware, aerospace, auto parts, construction.
Advantages over other cutting methods?
High precision, narrow kerf, smooth & burr-free, small heat-affected zone, no secondary grinding. Non-contact, no mechanical stress or tool wear.
What software & file formats are compatible?
Supports LightBurn, AutoCAD, etc. Compatible with DXF, SVG, AI, EPS, DWG, PDF, PLT.
How to choose laser power?
Depends on material and thickness. Not sure? Contact us for the right power recommendation.
Maintenance tips for laser cutting machine?
Clean optics & nozzle regularly. Check cooling system (water/air). Lubricate rails & screws. Clean dust filter & soot residue.
Is it difficult to operate? Need training?
HI-NEXT machines have visual interface and detailed manual. Easy for beginners. Read safety guide or contact our technicians online.
What is the lead time for a metal laser cutter?
Usually 4–6 weeks, depending on equipment and custom needs. We provide a detailed schedule at order confirmation.
